Back to top1) video channel: road on the 8th of road 720 p or 720 p IPC input, support Onvif;
2) support the video resolution: road on the 8th of road 720 p or 720 p;
3) playback channel number: 4 720 p or 1 road 1080 p;
4) support for SATA hard disk number: 1 (U disk/USB mobile hard disk/E - SATA hard disk).

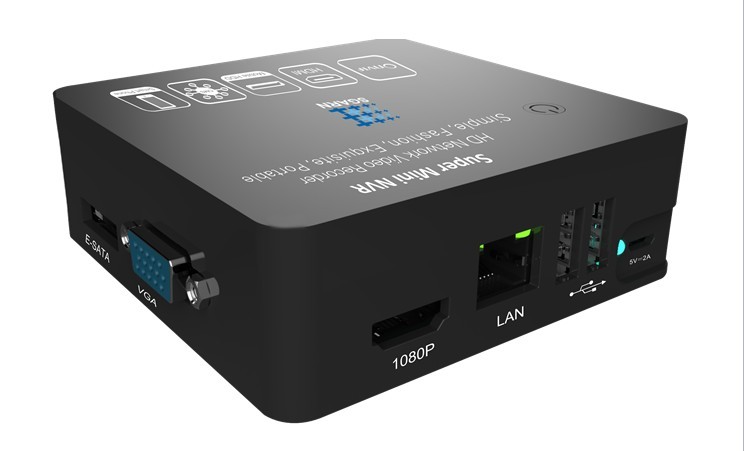

5) standard: the mouse, USB x 2, network, VGA, HDMI interface;

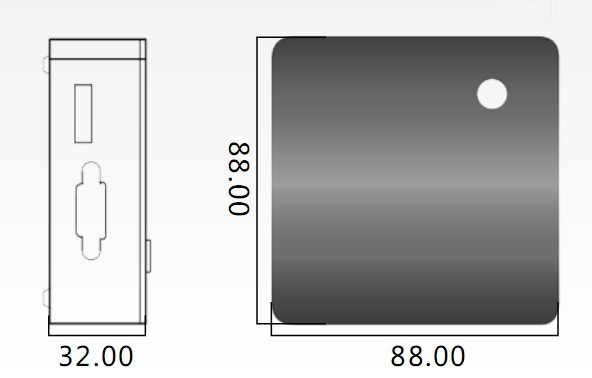

6) size/weight: machine: 88 mm * 88 mm * 32 mm, including packing: 185.5 mm x 115.5 mm x 36 mm, net weight: 105 g; Packing: 250 g;
7) features: complete support HDMI (standard); 3 g, WIFI.
8) DC 5 v 2 a
Enlarge imageBack to top|
Product model |
SR-N5108E |
|
|
Pperating system |
Embedded LINUX operating system |
|
|
Image coding control |
Image coding quality adjustable, optional variable code flow and restricted code flow |
|
|
Double stream |
Each channel can be set up |
|
|
Video standard |
1080P(1920×1080)30Frames per second/960P/(1280×960)/720P(1280×720)30Frames per second |
|
|
Monitor image quality |
1080P(1920×1080) / 960P/(1280×960)/720P(1280×720) |
|
|
Image dynamic detection |
Every picture can detect multiple detection area, can be installed level 6 sensitivity（To the IPC support） |
|
|
Image playback quality |
8 way 720 p / 960 p mode synchronous playback 4 way, |
|
|
8 way 1080 p mode 1 way 1080 p playback |
||
|
Regional block set |
Each road support four regional block pieces（To the IPC support） |
|
|
Video mode |
Support manual, automatic, dynamic monitoring, alarm trigger video mode（Support part to the IPC） |
|
|
Backups |
Support the hard disk, U disk, USB mobile hard disk, USB burn, network storage and backup |
|
|
Mode of operation |
Mouse |
|
|
Local login |
User name and password |
|
|
Recorded |
Local hard disk, network |
|
|
External interface |
Network video input |
① 4×(1280*720) +sub[960*576]+4Ref.+4Play 8 way 1 million IP network camera |
|
② 4×(1280*960)+sub[960*576]+1Ref.+4Play 8 way 1.3 million IP network camera |
||
|
③ 4×(1920*1080)+sub[960*576]+4Ref.+1Play 8 way 2 million IP network camera |
||
|
④ 1×(1920*1080)+sub[960*576]+4Ref.+1Play 8 way 400000 IP network camera |
||
|
Audio input |
8 way Network audio input |
|
|
Video output |
1 way VGA+1 way HDMI |
|
|
Audio output |
1 way RCA |
|
|
Network interface |
A RJ45, 10 m / 100 m adaptive Ethernet front-end ports |
|
|
USB interface |
2 USB 2.0interface |
|
|
Wireless interface |
3G，WIFI |
|
|
Hard disk |
Mobile hard disk / E-SATA |
|
|
Cell phone monitoring |
Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android) system of smart phones |
|
|
Power supply |
5V2A |
|
|
Power consumption |
≤10 （without hard drive） |
|
|
Working temperature |
-10℃～＋55℃ |
|
|
Working humidity |
10％-90％ |
|
|
Size |
Machine: 88 mm * 88 mm * 32 mm, including packing: 185.5 mm x 115.5 mm x 36 mm |
|
|
Weight (excluding hard disk) |
Net weight: 105 g; Packing: 250 g |
|
|
Turnover box |
30 units/carton size: 365 * 350 * 350 mm; Weight: 8 kg |
|
|
Installation |
Desktop installation |
|
