Back to top1) video channel: 16 960 p / 9 road 1080 p IPC input, support Onvif;
2) audio channels: 1 road RCA intercom, RCA audio output 1 road;
3) support for video resolution: 16 960 p / 9 road 1080 p;
4) playback channel number: 960 p mode 4 road playback; 9 1080 p mode 1 road playback;
5) support for SATA hard disk number: 2;
6) standard: the mouse, USB x 3, network, VGA, HDMI interface;
7) size/weight: 350 mm * 240 mm * 70 mm / 1.7 Kg;
8) features: complete support HDMI (standard); 3 g, WIFI.
Enlarge imageBack to top|
Product model |
SR-N6216E |
|
|
Operating system |
Embedded LINUX operating system |
|
|
Image coding control |
Image coding quality adjustable, optional variable code flow and restricted code flow |
|
|
Double stream |
Each channel can be set up |
|
|
Video standard |
1080P(1920×1080)30Frames per second/960P/(1280×960)30Frames per second/720P(1280×720)30Frames per second |
|
|
Monitor image quality |
1080P(1920×1080) / 960P/(1280×960)/720P(1280×720) |
|
|
Image dynamic detection |
Every picture can detect multiple detection area, can be installed level 6 sensitivity（To the IPC support） |
|
|
Image playback quality |
16 way 9600 p mode 4 way 960 p synchronous playback, 9 way 1080 p mode 1 way 1080 p playback |
|
|
Regional block set |
Each road support four regional block pieces（To the IPC support） |
|
|
Video mode |
Support manual, automatic, dynamic monitoring, alarm trigger video mode（Support part to the IPC） |
|
|
Backups |
Support the hard disk, U disk, USB mobile hard disk, USB burn, network storage and backup |
|
|
Mode of operation |
mouse |
|
|
Local login |
user name and password |
|
|
Recorded |
Local hard disk, network |
|
|

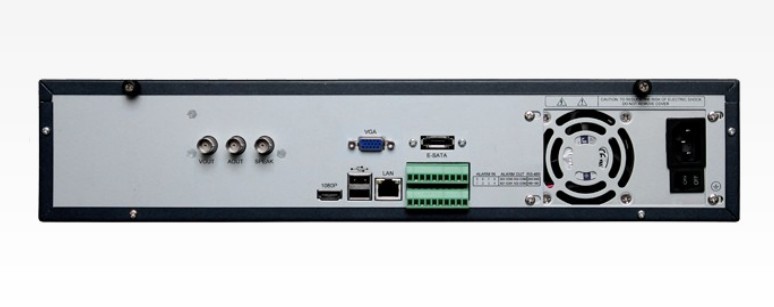

External interface |
Network video input |
① 16×1280*960)+sub[640*480]+4Ref.+4Play 16 way 1.3 million IP network camera |
|
② 9×1920*1080)+sub[960*576]+4Ref.+1Play 9 way 2 million IP network camera |
||
|
Audio input |
16/9 way network audio input |
|
|
Video output |
1 way VGA+1 way HDMI |
|
|
Audio output |
1 way RCA |
|
|
network interface |
A RJ45, 10 m / 100 m / 1000 m adaptive Ethernet front-end ports |
|
|
USB interface |
Paragraph 1.5 U A panel of three USB 2.0 interface, paragraph 1.5 U B panel two USB 2.0 interface |
|
|
wireless interface |
3G，WIFI |
|
|
Hard disk |
Hard disk interface |
Two SATA hard disk interface |
|
maximum capacity |
Each interface support capacity of the largest 4 TB hard drive |
|
|
Cell phone monitoring |
Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android) system of smart phones |
|
|
Power supply |
12V4A |
|
|
Power consumption |
≤25W（Without hard drive） |
|
|
Working temperature |
-10℃～＋55℃ |
|
|
Working humidity |
10％-90％ |
|
|
Size |
Machine：350mm×240mm×70mm，including packing： 409mm×365mm×129mm |
|
|
Weight (excluding hard disk) |
Net weight: 1.7 Kg; Packing: 2.89 Kg |
|
|
Turnover box |
five one case。size：675mm×425mm×385mm； weight ：15.22 Kg。 |
|
|
Installation |
Desktop installation |
|
