Back to top1) video channel: 4 3 mp wan / 16 road 20 road 1080 p / 1080 p / 960 p IPC input, support Onvif;
2) audio channels: 1 road BNC intercom, BNC audio output 1 road;
3) support for video resolution: 4 3 mp wan / 16 road 20 road 1080 p / 960 p;
4) playback channel number: 4;
5) support for SATA hard disk number: 9 disc;
6) standard: the mouse, USB x 3, network, VGA, HDMI, E - SATA interface x 1; Alarm interface;
7) size/weight: 440 mm * 450 mm * 90 mm / 6.5 Kg;
8) features: complete support HDMI (standard); 3 g, WIFI.
Enlarge imageBack to top|

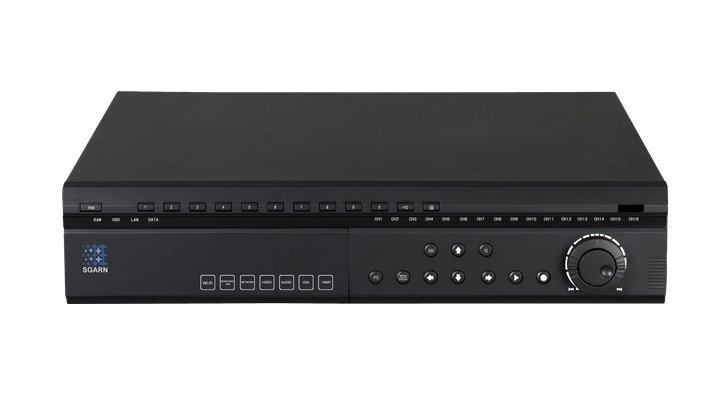

Product model |
SR-N8116E |
|
|
Operating system |
Embedded LINUX operating system |
|
|
Image coding control |
Image coding quality adjustable, optional variable code flow and restricted code flow |
|
|
Double stream |
Each channel can be set up |
|
|
Video standard |
1080P(1920×1080)30Frames per second / 960P(1280×960)30Frames per second/720P(1280×720)30Frames per second |
|
|
Monitor image quality |
1080P(1920×1080) / 960P(1280×960)/ 720P(1280×720) |
|
|
Image dynamic detection |
Every picture can detect multiple detection area, can be installed level 6 sensitivity（To the IPC support） |
|
|
Image playback quality |
Any 4 way 1080 p / 960 p / 720 p synchronous playback |
|
|
Regional block set |
Each road support four regional block pieces（To the IPC support） |
|
|
Video mode |
Support manual, automatic, dynamic monitoring, alarm trigger video mode |
|
|
Backups |
Support the hard disk, U disk, USB mobile hard disk, USB burn, network storage and backup（Support part to the IPC） |
|
|
Mode of operation |
2 u A, B, C panel can use the mouse, remote control, the front panel buttons, 2 u L panel only can use the mouse operation |
|
|
Local login |
user name and password |
|
|
Recorded |
Local hard disk, network |
|
|
External interface |
Network video input |
① 20×(1280*960) +sub[640*480]+4Ref.+4Play 20 way 1.3 million IP network camera |
|
② 16×(1920*1080)+sub[640*480]+4Ref.+4Play 16 way 2 million IP network camera |
||
|
③ 4×(2048*1536)+sub[960*576]+4Ref.+4Play 4 way 3 million IP network camera |
||
|
④ 20×(1280*960)+sub[720*576]+1Ref.+4Play 20 way 1.3 million IP network camera |
||
|
⑤16×(1920*1080)+sub[720*576]+1Ref.+4Play 16 way 2 million IP network camera |
||
|
Audio input |
16 way network audio input |
|
|
Video output |
1 way VGA+1 way HDMI |
|
|
Audio output |
1 way RCA |
|
|
Network interface |
A RJ45, 10 m / 100 m / 1000 m adaptive Ethernet front-end ports |
|
|
RS485 interface |
Full duplex standard 485 interface |
|
|
USB interface |
3 USB 2.0 interface（1 the front panel、The tail plate 2） |
|
|
Alarm input |
4 way |
|
|
Alarm output |
1 way |
|
|
Wireless interface |
3G，WIFI |
|
|
Hard disk |
Hard disk interface |
9 SATA+1 E-SATAhard disk interface |
|
Maximum capacity |
Each interface support capacity of the largest 4 TB hard drive |
|
|
Cell phone monitoring |
Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android) system of smart phones |
|
|
Power supply |
ATX110-220V 300W 50-60Hz |
|
|
Power consumption |
≤35W（Without hard drive） |
|
|
Working temperature |
-10℃～＋55℃ |
|
|
Working humidity |
10％-90％ |
|
|

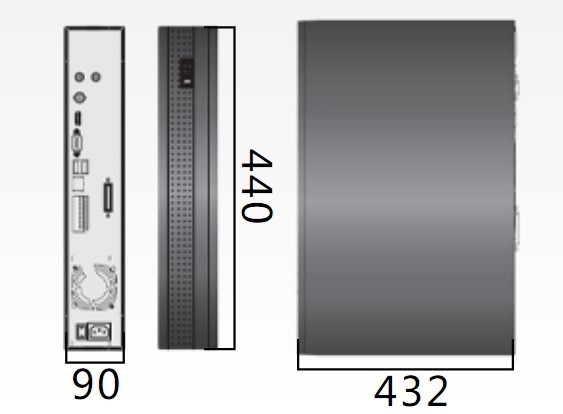

Size |
2U A、B、C device：440mm×450mm×90mm， Packing： 539mm×550mm×225mm |
|
|
2U L device：440mm×432mm×90mm， Packing： 539mm×550mm×225mm |
||
|
Weight (excluding hard disk) |
2U A、B、C device：net weight：6.5Kg； Packing：9Kg |
|
|
2U L device：net weight：7.4Kg； Packing：9.8Kg |
||
|
Turnover box |
2U A、B、C Two a case。Size：555mm×545mm×470mm；Weight：19.5 Kg。 |
|
|
2U L Two a case。Size：555mm×545mm×470mm；Weight：21 Kg。 |
||
|
Installation |
Desktop installation, standard rack installation |
|
