Back to topMain features:
• highest resolution of 1.3 million pixels (1280 * 960), frame rate of 30 FPS
• Advanced video compression technology, high compression ratio, and processing is very flexible
• Progressive-scan CMOS, capture images without sawtooth
• Double filter automatic switching, three lattice, infrared distance 40 meters
• double stream, motion detecting, password protection
• flicker, heartbeat, watermark technology, CVBS video output
• Compatible with Onvif, GB/T28181 standards
• support Android, Apple mobile phone system
• DC12V
Enlarge imageBack to topApplication scenarios:
Apply to the financial, telecommunications, supermarkets, hotels, government, schools, airports, factories, public security, justice, peace, cities and places of demand that the high-definition image quality.
Back to top|

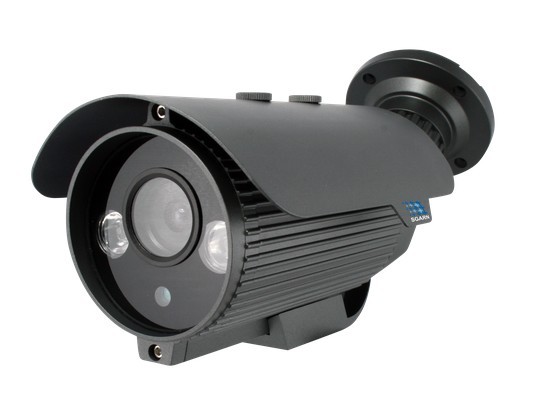

Model |
SR-NC8213D |
|
Sensor |
1/3’ 1.3MP Progressive scan CMOS |
|
Minimum illumination |
0 Lux |
|
Lens |
3.6mm/6mm F1.8 IR Millions of pixels lens |
|
Day and night conversion mode |
The double filter switch day and night |
|
The video management software |
256 road access at the same time |
|
Video compression standard |
H.264/Mjpeg |
|
Compressed output bit rate |
16K-6Mbps |
|
Audio compression standard |
G.711/G.726 |
|
Maximum image size |
1280*960 |
|
Frame rate |
1-30frames |
|
Image set |
Brightness, contrast, saturation, sharpness, etc by the client or Internet explorer is adjustable |
|
Intelligent alarm |
The motion detecting, external alarm input |
|
Support agreement |
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP, PPPoE,SMTP,NTP,UPnP,FTP,802.1x, |
|
Common functions |
A key recovery, double stream, password protection, video, OSD |
|
Communication interface |
A RJ45 10 m / 100 m adaptive Ethernet front-end ports |
|
Audio input |
1 way |
|
Alarm input |
1 way |
|
Working temperature and humidity |
Temperature: 0 ℃ - 45 ℃ (32-113 ° F) humidity: 20-80% RH |
|
The power supply |
DC12V±10% |
|
Power consumption |
10W MAX |
|
Weight |
820g |
