Back to topMain features:
• Beautiful shape.
• Explosion proof, dustproof, waterproof.
• Low stainless steel materials used in corrosive environment.
• Bring the camera and prime lens.
• Low Windows using solid toughened glass.
• Windows have nano stealth wiper function, non-stick water, non-stick oil, to exclude dust.
• Low cover has two round hole in the back.
• Low protection grade IP66.
• Indoor and outdoor installation, all-weather use.
Enlarge imageBack to topApplication scenarios:
Apply to have A and B Ⅱ Ⅱ, Ⅱ C combustible gases, ignition temperature classes T1 - T6 group 1 zone and 2 zone, combustible gas or vapor form explosive mixtures with air, can also be applied to ignition temperature classes T1 - T6 group of 20, 21, 22, the sites containing combustible dust in mixture. Such as petroleum, chemical industry, mine, military industry, medicine, oil depot, ships, drilling platform, gas stations, fireworks production, food processing and storage, etc.
Back to top|
Product model |
SR-FS9506L |
|
Explosion-proof marks |
ExdⅡBT6 |
|
Protection grade |
IP66 |
|
Imaging device |
color 1/3"SONY Super HAD CCD |
|
Signal system |
PAL |
|
resolution |
700TVLin |
|
Video output |
1.0Vp-p (75Ω，Composite video) |
|
To switch between day and night |
Automatic (ICR automatic switch) |
|
Minimum illumination |
Color: 1.0 Lux, black and white: 1.0 Lux |
|
Signal to noise ratio |
≥50dB |
|
The white balance |
Automatic white balance |
|
synchronously |
Inner/outer synchronization（V-Lock） |
|
Electronic shutter |
1/1s to 1/10000s |
|
AGC |
automatic |
|
AE control |
automatic |
|
EV compensation |
-10.5 to + 10.5 dC (1.5 dB) |
|
BLC |
On/off |
|
The lens |
2.8-25 mm prime lens optional |
|
The power supply voltage |
DC12V /AC220V |
|
Working current |
＜2A |
|
Consumed power |
≤10W |
|
The environment temperature |
-25℃ ~ +70℃ |
|
The atmospheric pressure |
80KPa～106KPa |
|
Relative humidity |
≤95%RH(+25℃ |
|
Product material |
Stainless steel |
|
Windows |
10 mm tempered explosion-proof glass |
|
The window size |
￠60mm |
|

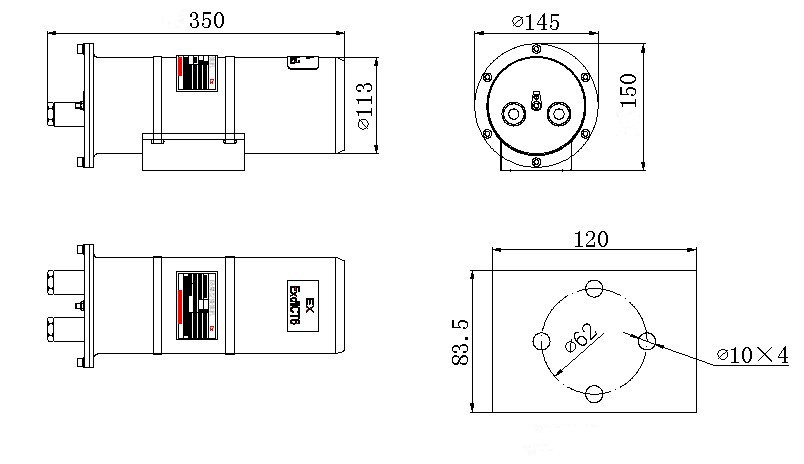

Overall dimensions |
￠113mm ×350 mm(long) |
|
weight |
≤8kg |
|
The outlet hole size |
G-1/2″ |
|
The outlet hole number |
2 |
|
installation |
Electric yuntai, universal, fixed bracket, pillar |
