Back to topMain features:
• 1/3 inch Sony Exview HAD CCD Ⅱ
• 700 TVL resolution
• digital wide dynamic, strong inhibition, digital noise reduction, intelligent infrared function
• automatic focusing, automatic aperture, the double filter switch (ICR) day and night
• built-in video test port
• 18 x optical zoom, maximum aperture F value of 1.6
• mobile frame (4) measurement, privacy private cover (4)
• RS485 control
• 100 metres (intelligent control, infrared distance infrared lamp strength)
• DC12V
Enlarge imageBack to topApplication scenarios:
Suitable for large warehouse, plot peripheral monitoring, station, wharf, square, school
Back to top|
model |
SR-SS8307DF |
|
|
image |
The image sensor |
ICX673AKA |
|
standard |
PAL |
|
|
The total pixels |
1020(H)X596(V) |
|
|
Effective pixels |
976(H)X582(V) |
|
|
Scanning system |
2:1 interlace |
|
|
synchronously |
The synchronous |
|
|
horizontal resolution |
700 line |
|
|
Signal to noise ratio |
≥48dB(Automatic gain clearance ） |
|
|
Minimum illumination |
0.05LUX(1X）30IRE |
|
|
function |
The menu |
Chinese/English |
|
To switch between day and night |
Color, black and white, the internal and external (LSR) |
|
|
Automatic gain |
High, middle, low |
|
|
The white balance |
Automatic, indoor, outdoor, trigger, manual, colour, fixed |
|
|
Wide dynamic |
Shut, open |
|
|
Digital noise reduction |
Shut, open |
|
|
Mobile frame measuring |
4 area |
|
|
Privacy shelter |
4 area |
|
|
Infrared distance |
100 meters |
|
|
The lens |
The focal length |
5.04mm～90.2mm （18 times） |
|
The aperture |
F1.6～F3.0 |
|
|
Gather the scope |
30cm(118 times)---1000m |
|
|
Change of times |
About 5 seconds (wide Angle, distance) |
|
|
Video format |
Video output |
1.0Vp-p/75Ω |
|
Communication protocol |
Communication protocol |
PELCO-D |
|
other |
Protection grade |
IP66 |
|
The power supply voltage |
DC12V(9V～18V) maximum 6W/500mA |
|
|
Working temperature |
0-5℃～50℃ |
|
|
Storage temperature |
0-20℃～60℃ |
|
|

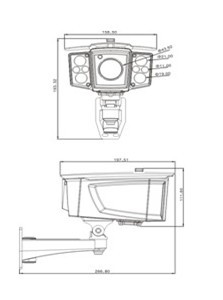

size |
266.8mm(L)X158.5mm(W)X111.8mm(H) |
|
