Back to topProduct features
1, 1/3" SONYSUPER HAD CCD11(960H)
2, up to 700/800 TVL resolution
3, support the automatic electronic shutter, adapt to different monitoring environment
4, support automatic white balance, color reduction degree is high
5, using a new generation of infrared lamp array technology, night vision more clearly
6, support intelligent infrared lamp control technology
7, support coaxial line of sight (UTC) menu technology, convenient installation and debugging
8, the input voltage: DC12V
Enlarge imageBack to top|
Model |
SR-SS7108D |
|
Imaging device |
color 1/3" SONY |
|
Horizontal resolution |
800 line low illumination, DWDR, OSD, DNR |
|
Effective pixels |
NTSC:976(H)×494(V),PAL:976(H)x582(V) |
|
TV system |
PAL/NTSC |
|
Infrared lamp |
2 lattice lamp |
|
Infrared distance |
30M |
|
Lens |
Fixed lens 3.6mm/6mm |
|
Synchronously |
inter-sync |
|
Minimum illumination |
0.01Lux/F1.2 |
|
Signal to noise ratio |
≥48dB (AGC OFF) |
|
2D digital noise reduction |
optional |
|
Video output |
Composite Signal (1.0Vp-p, 75Ω) |
|
Dynamic field detection |
On/off (set) |
|
Electronic shutter |
automatic:PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec |
|
Work environment |
-10℃ ~ +50℃ RH95% Max |
|
Storage temperature |
-20℃ ~ +60℃ RH95% Max |
|
White balance |
ATW/single press roll/color/manual/single press lock/users 1/2 |
|
Power consumption |
DC12V 400mA |
|

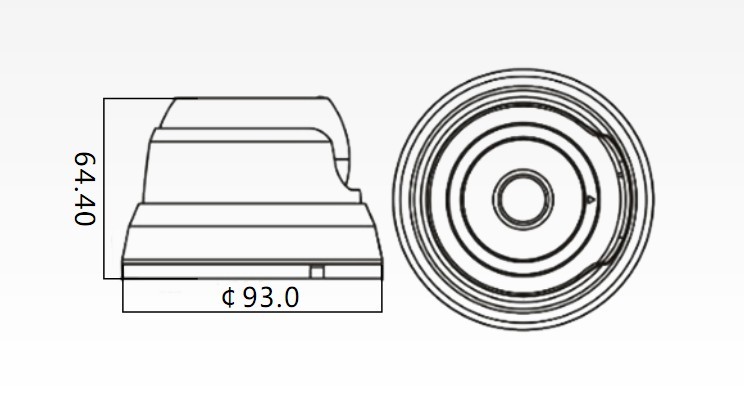

Size |
64(W)x93(H)x93(D)mm |
|
Weight |
180g |
