Product model

SR-DVR5004T/SR-DVR5008T/SR-DVR5016T

system

main processor

Industrial-grade embedded microcontroller controller

operating system

Embedded Linux struggles operating system

Video parameters

Image coding standard

H.264

Video standard

PAL 625 line 50 / SEC.

Monitor image quality

PAL D1(704×576)

playback image quality

PAL QCIF(176×144)、CIF(352×288)、HD1(352×576)、D1(704×576)

image control

Image quality is adjustable optional variable code stream and fixed code flow

Double stream

Each channel can be set up double stream vice stream does not exceed the set the highest resolution of the main stream

Image motion detecting

396 per screen can be set up by 18 (22) a detection area can be set up multi-level 1-6 sensitivity adjustable

Regional block set

Each road support four regional block pieces

Audio parameters

Coding standards

G.711A

Voice intercom

Two-way voice intercom function independent intercom channel

video management

Video mode

Support manual automatic video motion detection alarm trigger mode

Recorded

This machine is hard disk, network

 video speed

Every road D1@ 25 fps

Video playback

Support for 1, 2, 3, 4, and playback N N road on behalf of the highest equipment route

backups

Support the hard disk, recorders, U disk storage and backup

video

Video input

BNC interface 4/8/16 road

Video output

1 road simulation video BNC interface (Vp - 1.0 p, 75 ohms), 1 way VGA output support 1920 x 1080 x 1280, 1080, 1280 by 1024, 1024 by 768, 800 x 600 resolution, 1 HDMI output support 1920 * 1080, 1280 * 1080, 1280 * 720, 1024 by 768, 1024 * 600 resolution.

Screenshots function

Support JPEG screenshots function

On the output

Analog video 4/8/16 road BNC interface(1.0Vp-p, 75ohms)

Matrix output

4/8/16 choose 1 output video matrix

audio

Audio input

4/8/16 route audio input

Audio output

1 line audio output

Call the police

Alarm input

4/8/16 way alarm input, low level effective green terminal interface

Alarm output

No.6 alarm relay contact output (1 a @ 24 VDC), NO, NC programmable, green terminal interface

other

network

A RJ45 interface, 10/100 m adaptive

communication

Standard 485 interface support half duplex DB9 green terminal interface, the standard 232 interface

USB

Two USB 2.0 interface 1 backboard one front panel interface

hard disk

Internal support 8 SATA hard disk interface

eSATA口

Support independent hookup interface

power supply

220V±10% 50Hz±2% / 110±10% 60Hz±2%

Power consumption

30W(excluding hard disk)

Working temperature

0℃-+55℃

Working humidity

10%-90%

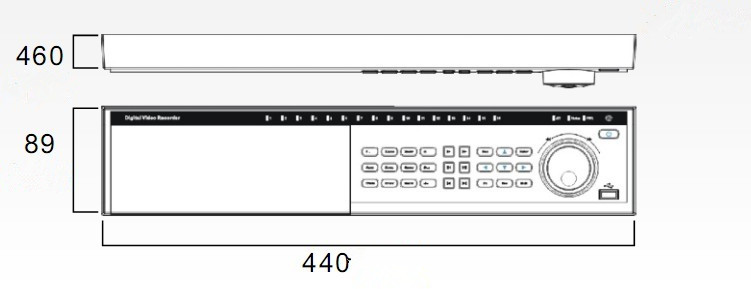

size

440mm * 460mm * 89 mm(2U height)

weight

6.5-7.5kg

installation

Rack installation   Desktop installation
