Back to topProduct features
Communication: the RS485 network, networking distance of 1200 meters
CPU using 32-bit ARM7 chip, industrial design, triple lightning protection, anti-static, is of strong resistance to interference, high reliability. Internal watchdog, prevent crashing. Fast response speed, on the basis of the stored 50000 card to determine whether to open the door access and response time is less than 0.1 S to open the door.
Powerful data processing ability, information can be stored 50000 cardholders, offline store 100000 history.
Can open mode design, strong compatibility, and various brands on the market of the card reader and door lock systems. Can provide OEM for integrators, project traders and personalization.
Support credit card to open the door, card + password, the password to open the door, normally open, normally closed the door, door card to open the door, the first card to start, more card to open the door, open button to open the door, remote, etc. A variety of ways.
Can support various Wiegand 26 card reader, Wiegand interface to provide sound and light response output.
Support for multiple alarms, and Settings are respectively: fire linkage, timeout, door open trespassing, power outage alarm, etc. The event log and alarm record real-time active upload.
Support the sneaking back, regional himself back
Support the two-door interlock or more interlock
Supporting software: simplified Chinese entrance guard management software, still can give normal class and more frequency shift attendance management software
To form a complete set of software to support database: Access and SQL
Enlarge imageBack to topProduct introduction

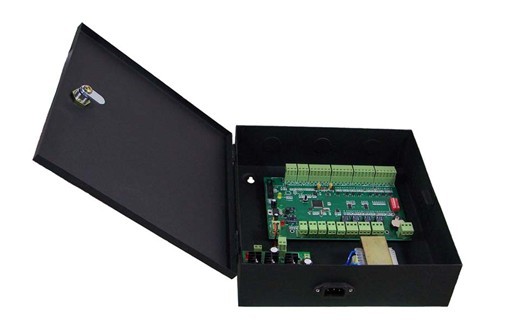

SR - CP102K two-door two-way entrance guard controller is a kind of IC card, ID card access control based on RS485 network controller, can control the two two-way pass in and out of the door, using the world famous American NXP company (the original European PHILIP) for 32-bit ARM7 processor as the main control chip, the internal operation RTOS real-time operating system and FAMS2 storage management system, high-performance entrance guard controller is designed according to requirements of the industrial technology.
Entrance guard controller not only has common entrance guard function, such as: offline operation, real-time monitoring, photo, mass storage, flexible permissions, remote to open the door, multi-user management, bulk and small amounts of the fast, convenient query, statistics report format modify and print output to Excel files, card + password, the door open for a long time alarm, illegal CARDS alarm, card to open the door, illegal intrusion alarm, time to open the door, electronic maps, and other functions.
Back to top|
Product model |
SR-CP102K |
|
Management gate number |
2 |
|
Each door store users |
50000 |
|
Offline record number |
100000 |
|
Card reader interface |
4 |
|
Push button |
2 |
|
Electric lock control |
2 |
|
Open time |
0.1 to 25.5 seconds |
|
Magnetic door input |
2 way |
|
Alarm output |
2 |
|
Alarm response time |
0.1 to 25.5 seconds |
|
Fire control input |
1 |
|
Protect the data off battery hold time |
more than 10 years. |
|
Iron box size |
278 mm * 266 mm * 76 mm |
|
case Colour |
black frosted |
|
case Weight |
about 3000 grams |
|
Carton size |
320 * 280 * 110 mm |
|
main board Size |
195 mm * 125 mm * 1.6 mm |
|
main board Location hole |
130mm * 93 mm |
|
main board Color |
green |
|
main board Weight |
about 300 grams |
|
Working Temperature |
< 60 ℃ |
|
Working Humidity |
10% ~ 95% r.h. |
|
Rated voltage |
DC12V |
|
Rated current |
< 0.2 A |
|
Rating |
5 w or less |
