Product model

SR-CP200K

User rights

 number 20000 (the default) to make (up to 60000 user permissions)

Records offline storage capacity

100000

Communications

 RS232 RS485 jumper wire free adaptive 9600 baud rate

on-off mode

Mixer can tube two door card that take the door and push button, or go out into the card

Size

160 mm * 106 mm wide

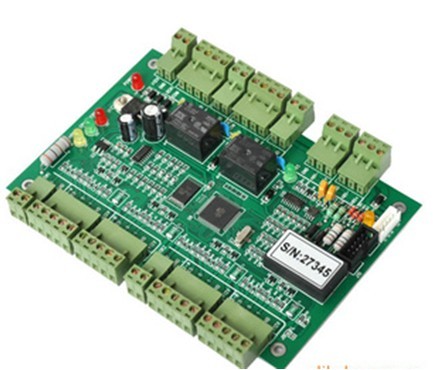

The power consumption of the circuit board

 100 ma (without load)

Support card reader

Wiegand 26 agreement card reader (compatible with the agreement of all the card reader, such as Motorola, HID, EM, Mifare one, etc.)

Card reader connected

Mixer can meet four Wiegand26 card reader

Time delay

Mixer output relay control door, adjustable delay with 1-600 seconds

Connected to the Internet

Pieces can be connected to the largest 256 computers

Card reader to the controller of the biggest online distance

100 m

RS232 communication

the communication distance is less than 13 meters, suggest 3 meters.

RS485 communication methods

bus 1200 meters, the longest proposal within 1000 meters, increase extension equipment of up to 3000 meters.

Alarm function

Mixer door open for a long time from trespassing duress alarm function

Integrated fire alarm linkage:

If not connect ZN700E extension board, only at the alarm prompt, and drive computer speakers shall report to the police.

If the connection is ZN700E alarm extension linkage plate, have hardware alarm output function

Open the door function

In pieces the remote to open the door, anti-submarine defense following, multiple CARDS at the same time opening after verification, often open the door.

other

Pieces of electronic map, emergency shut down function (emergency double closed), the first card to open the door, the external password keyboard function (card + password, the password)
