Back to topbrake machine characteristics
1, stainless steel body, cooperate with 2.0 stainless steel frame, beautiful and easy, strong and durable;
2, has the personalized installation interface convenient (integrated magnetic card, barcode card, ID card, IC card, such as reading and writing equipment);
3, using two-way electromagnetic lock, hydraulic buffer structure, smooth operation, soft cushion, no running noise, no mechanical shock
4, surface movement in yellow dichromate electroplating, anti-rust durable;
5, with various working modes to choose from, can install a one-way or two-way control;
6, have power automatic release function, meet customer requirements and special fire safety requirements;
7, a unified, standard external electrical interface, can be free to hook up with a variety of reading and writing equipment, facilitate system integration;
8, have clear passage indicator function, prompt to traffic condition.
Brake unit into
1, read the card decorative panel (dark brown glass) 2, on the cover plate (1.5 wire drawing of stainless steel)
3, side cover (1.5 drawing stainless steel) 4, wheel (aluminum alloy)
5, fork rod (aluminium/stainless steel) 6, indicator light
7, cabinet lock

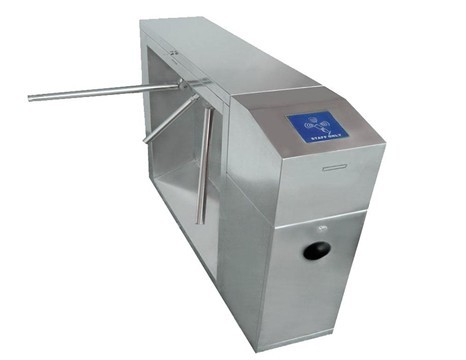

Enlarge imageBack to topBox with rounded corners three rod brake machine is my company a unique appearance, this brake chassis with circular arc aluminum and stainless steel materials
Close, make the machine more beautiful line. This brake machine appearance because of its unique structure, so the casing solder joints significantly less poor, thus make the whole
Enclosure appearance promoted a grade, with mechanical/half move and fully automatic machine core, with its stable performance and excellent appearance, already
By our company are widely used in domestic hundreds of tourist scenic spots as ticket ticket gate, for in and out of the tourists to rigorous tickets fee control tube
Richard.
Back to top|
Product model |
SR-QUE7011R |
|
appearance size |
1200 mm (L) x 280 mm (W) x 980 mm (H) |
|
heavy quantity |
60 kg (net weight) |
|
power |
150 W |
|
the electric source |
AC220V plus or minus 10%, 50 hz, 200 w. |
|
the working temperature |
- 10 ℃ to 50 ℃ |
|
work humidity |
5% to 90% without any condensation |
|
mechanical life |
more than 2 million times |
|
the service life |
10 years |
|
protection level |
IP45 |
|
Control interface |
two dry contact input control (level); |
|
all the relay input remote control gate fell rod; |
