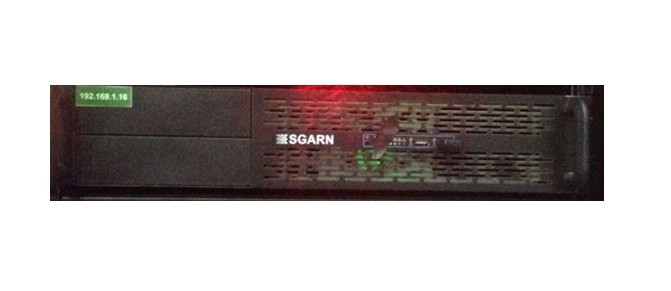

Sgarn the screen processor is a pure hardware architecture, operating system, high-performance video image processing workstation, is suitable for the education of scientific research, government announcements, information publishing, administrative, military command, exhibition display, security monitoring, etc.

The Sgarn screen processor set high definition video signal acquisition, real-time high resolution digital image processing, 3 d high-order digital filter and other high-end image processing functions in one, is a powerful signal processing ability. Product this adopt large capacity high-speed FPGA and CrossPoint array processing mechanism of an exchange of digital data bus route more fundamentally ensure all input signal source for the real-time processing and data consistency, the image without delay and without discretization, no frame, to achieve the perfect image.

The Sgarn screen splicing processor unit contains a variety of 380/580/780/980 function models, each models are available with a variety of optional scale, one of the most massive can support the joining together of 72 pieces of large screen display, more colleagues support group, according to the different screen resolution for each group of resolution can be set according to the actual demand custom, and the more groups of different specifications and combination shows the system is very meaningful.

The processor supports multiple signal input mode, including composite video (DVD or a video camera signal) computer signal (VGA or DVI signal), the network signal (IP) media, high-definition digital signals (such as HDMI or DVI signal high resolution). For composite video, can simulate compatible with NTSC/PAL/SECAM formats; Of computer video signal, can support various common compatible distinguish stranded wire digital signal, supports RGB (simulated)/DVI (digital) colleagues output, this means that you can at the same time of large screen display normal, backup output the signals to another set of large screen, part of the model also supports dual DVUI - I channel backup. A single output channel top support resolution of 1920 * 1920 @ 60 hz. In addition, the standard configuration for each screen configuration ultra-high resolution dynamic reproduction.

The stitching controller color sampling depth can be up to 32 bit per pixel, image quality, but also has many functions, such as: based on TCO/IP control, dynamic adjust the window size, add borders and title, etc., so the Sgarn stitching processor is large-scale monitoring in LCD, LCD, DLP, etc on the wall shows that the ideal of many images.

The system of connection:

Sgarn  (SR - Processor) more screen Processor system in the display system and signal hub location, is the core of the large screen display system Settings.

Can be easily access from a variety of video source device VGA, DVI, SDI, HDMI, CVBS, YPbPr, IP stream media, twisted pair, such as signal, from a low resolution video monitoring simulation to high-definition digital signal, the add all can realize perfect compatibility, it has many different sizes of chassis, to adapt to the different size of system requirements. Before you can display in al matrix way, more large-scale system formed.

Can be realized by controlling the platform software and convenient management control, and can cascade equipment management mainstream manufacturers of matrix.

Matters needing attention

1. Before using this machine, it is necessary to read and understand all instructions to use.

2. Must be properly kept operating instructions, for future needs.

3. Must strictly observe the warning instructions on the machine the instruction for use.

4. The operation must comply with all instructions.

5. Do not use maker not recommend attached device, improper use set accidental failure may occur.

6. Before the AC power cord from the power supply socket, please check whether the monitor voltage source requirements appropriate to the local power supply condition, if you are not sure to use the type of power supply, please contact the dealership or local power department.

7. Do not use any items oppression or winding the power cord. Damaged power cord will cause electric shock or fire.

8. Do not attempt to repair the unit, because this machine has high pressure devices and other devices are easily damaged, pose dangers to human body or the monitor itself, please be sure to let the professional technician for repair.

9. Do not touch not mentioned in the instructions for use control unit. Controls on the use of this specification didn't mention the parts improper adjustment will damage the unit, also can increase the maintenance workload of professional and technical personnel.

10. The machine will need to replace parts, please maintenance staff to ensure the use or performance of the same with the original accessories manufacturers. Accessories improper use can result in fire, electric shock, damage to the monitor, etc.

11. If the machine is to be mounted on the wall or hung from the ceiling, please in accordance with the manufacturer recommendations for installation.

12. Clean the machine before, first unplug the power supply. Please use the slightly wet cloth to clean the machine. Cleaning, please do not use liquid detergent or spray cleaner.

13. Long time not to use this machine, please pull out the ac power plug.

14. The LCD panel of the unit using sensitive material to make, don't use anything to touch the LCD monitor. If the unit dropped from a height or hit, the LCD panel is likely to break. At this time, please immediately stop using the machine.

15. Switch time interval is not less than 2 seconds at a time.
