Back to topUsing professional high performance multimedia network processor high stability low power consumption and high reliability
Can use the embedded LINUX or Windows operating system, embedded software and hardware system design
Simultaneously decoding and MJPEG, h. 264 and MPEG4 format can solution at the same time millions of pixels equipment and non-standard cleaning equipment
Can interchange network camera, network fast ball
Support 32 D1/16 road 8 road 720 p / 720 p network video input
A single 2 t support 24 hard disk
Supports VGA, DVI interface display
Support the mouse with a remote client operation humanized GUI graphical interface
Has a general alarm I/O, and 485 control interface, and universal serial interface
With flexible disk management mechanism to support different access channels, different period of video
Can choose to support the hard disk raid 0, 1, 3, 5, 10
Support multiple level user permissions
Enlarge imageBack to top|

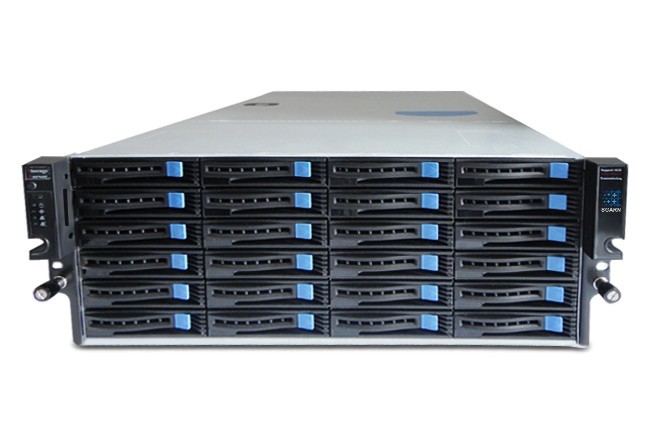

Product model |
SR-IPNVR-48-S24V |
|
Video channels |
Support 32 road / 720 p |
|
processor |
A 64 - bit quad-core processors |
|
internal storage |
standard 4GB Maximum can be extended to 64 GB |
|
Number of hard disk |
24 |
|
maximum capacity |
48 TB (in a single disk 2 TB) |
|
Hard disk interface |
Biggest support 3 TB SATA interface hard support SAS hard disk |
|
Hot-swappable hard disk |
support |
|
RAID way |
Support raid 0, 1, 5, 6, 10, 50 Hot - Spare mode |
|
file system |
iSCS/XFS |
|
supervisor mode |
Web based single equipment management and equipment management mode of network management |
|
master |
GigE Vision |
|
Redundant power supplies |
11 W / 1200 W PFC hotplug efficient redundant power supplies |
|
Environmental humidity |
Work 10 ℃ and 40 ℃ (50-104) |
|
Relative humidity |
Work when the maximum relative humidity 90 & RH (40 ℃) |
|
Storage 10% 95% RH |
|
|
working 10% 90% RH |
|
|
Shipment 10% 93% RH |
|
|
Storage 10% 95% RH |
|
|
vibration |
Frequency 5Hz-150Hz acceleration≤20m/s2 amplitude≤0.15mm |
|
impact |
Peak acceleration of 150 m/s2-300 - m/s2, time of duration≤11ms |
|
collision |
Peak acceleration of m/m/s2 s2-150, 100 times, 1000 times |
|
size |

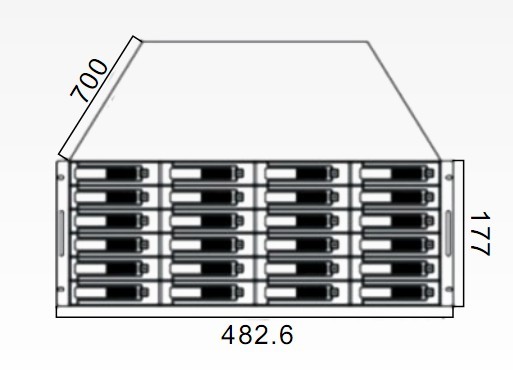

4 u: 177 mm (high) x482.6 mm (wide) x700mm (deep) |
|
weight |
≤30 kg (excluding hard disk) |
